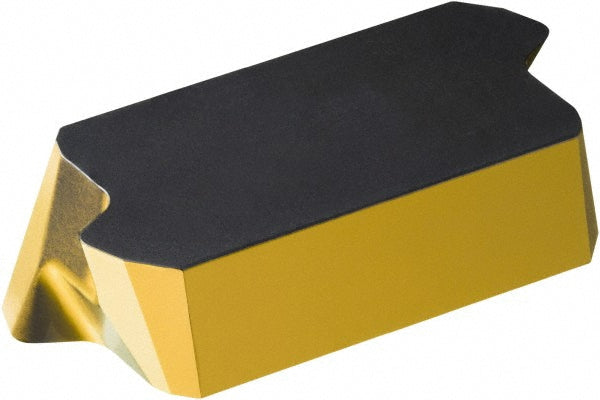

LNCX 18 06 AZ R-11 4230 Solid Carbide Insert, Grade 4230, TiCN - Sandvik Coromant 5735225

MFR# 5735225ISO/ANSI# LNCX 18 06 AZ R-11 4230Cat# LNCX 18 06 AZ R-11 4230Series LNCX

$45.72List $58.64 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
Grade4230
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5735225 is a LNCX 18 06 AZ R-11 4230 solid carbide indexable insert, grade 4230, TiCN coated. Suited for steel, cast iron.

Specifications

Ansi codeLNCX 18 06 AZ R-11 4230
Chip breakerFlat Top
Coating finishTiCN
Coating processCVD
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.3937
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeRectangle
Insert size18
Insert size code1806
Insert styleLNCX
Iso codeLNCX 18 06 AZ R-11 4230
Length0.7390
Length range0.7000 to 0.9000
Manufacturers catalog numberLNCX 18 06 AZ R-11 4230
Manufacturer grade4230
Material applicationSteel; Cast Iron
Maximum depth of cut0.4724
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2520
Thickness range0.2500 to 0.3500
Width0.3937
