Sandvik Coromant

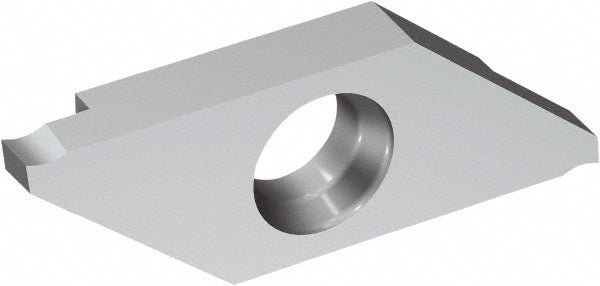

Solid Carbide Insert, Grade H13A - Sandvik Coromant 5735408
MFR# 5735408Series CoroCut XS
$46.57List $59.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeH13A
MaterialSolid Carbide
Description
The Sandvik Coromant 5735408 is a solid carbide indexable insert, grade H13A.
Specifications
ChipbreakerMAG
Corner radius0.0020
Cutting tool applicationGrooving; Parting; Turning
Cutting width0.0591
Full radiusNo
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert seat size3
Insert size code3
Insert styleMAGR
Manufacturers catalog number5735408
Manufacturer gradeH13A
Maximum depth of cut0.1457
Relief angle6.00
Width tolerance0.0008 (Inch)
