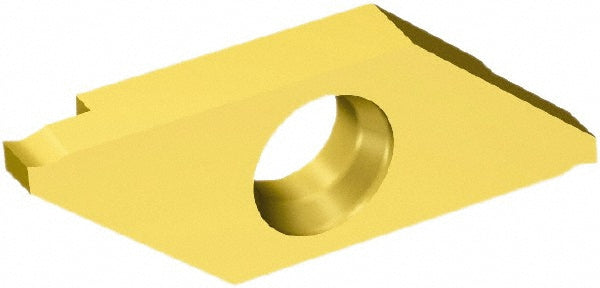

MAGR 3 175 1025 Solid Carbide Insert, Grade 1025, TiAlN/TiN - Sandvik Coromant 5735416

Sandvik Coromant

MAGR 3 175 1025 Solid Carbide Insert, Grade 1025, TiAlN/TiN - Sandvik Coromant 5735416

MFR# 5735416ISO/ANSI# MAGR 3 175 1025Cat# MAGR 3 175 1025Series CoroCut XS

$70.87List $89.32 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Grade1025
MaterialSolid Carbide
CoatingTiAlN/TiN

Description

The Sandvik Coromant 5735416 is a MAGR 3 175 1025 solid carbide indexable insert, grade 1025, TiAlN/TiN coated.

Specifications

Chip breakerMAG
Coating finishTiAlN/TiN
Coating processPVD
Corner radius0.0020
Cutting height in1/8
Cutting width0.0689
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3
Insert styleMAG
Insert thickness0.1250
Iso codeMAGR 3 175 1025
Manufacturers catalog numberMAGR 3 175 1025
Manufacturer grade1025
Maximum corner radius0.0028
Maximum depth of cut0.1457
Maximum depth of cut range0.1000 to 0.1500
Minimum corner radius0.0012
Multi use toolYes
Overall length0.4732
Overall width0.0689
RakeNeutral
Rake angle6.00
