Sandvik Coromant

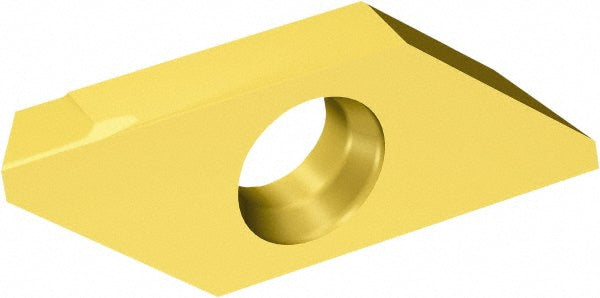

MAFR30051025 Carbide Insert, Grade 1025, TiAlN - Sandvik Coromant 5735437
MFR# 5735437ISO/ANSI# MAFR30051025Series CoroCut XS
$58.10List $74.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
Grade1025
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5735437 is a MAFR30051025 carbide indexable insert, grade 1025, TiAlN coated.
Specifications
Chip breakerR
Clearance codeA
Coating finishTiAlN
Coating processPVD
Corner radius0.0020
Insert handRight Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeParallelogram
Insert size code3005
Insert styleMAFR
Insert thickness in1/8
Iso codeMAFR30051025
Manufacturers catalog number5735437
Manufacturer grade1025
Maximum depth of cut0.1575
Multi use applicationTurning
Relief angle6
Tolerance codeF
