Sandvik Coromant
Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5735455
MFR# 5735455Series CoroCut XS
$54.14List $69.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1105
MaterialCarbide
CoatingTiAlN
Description

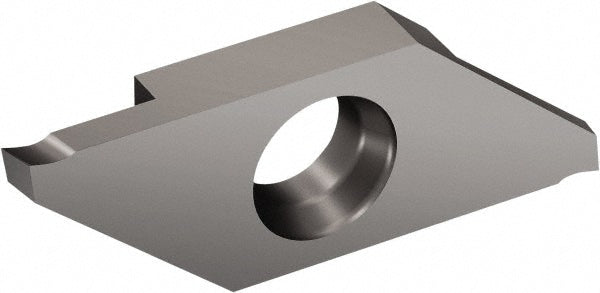

The Sandvik Coromant 5735455 is a carbide indexable insert, grade 1105, TiAlN coated.
Specifications
ChipbreakerMAC
Coating finishTiAlN
Coating processPVD
Corner radius0.0020
Cutting tool applicationGrooving; Parting; Turning
Cutting width0.0787
Full radiusNo
Insert handRight Hand
Insert holding methodScrew
Insert materialCarbide
Insert seat size3
Insert size code3
Insert styleMACR
Lead angle0
Lead angle directionRight Hand
Manufacturers catalog number5735455
Manufacturer grade1105
Maximum depth of cut0.3346
Relief angle6.00
Width tolerance0.0008 (Inch)
