Sandvik Coromant

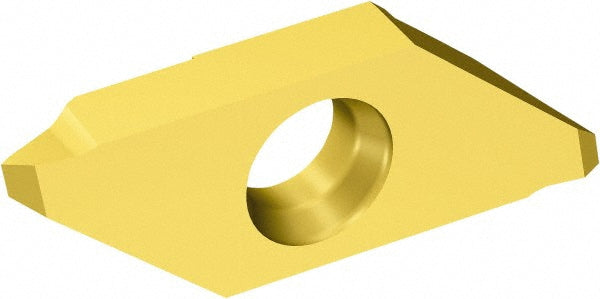

Solid Carbide Insert, Grade 1025, TiAlN/TiN - Sandvik Coromant 5735462
MFR# 5735462Cat# MATR 3 60-A 1025Series CoroCut XS
$58.10List $74.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1025
MaterialSolid Carbide
CoatingTiAlN/TiN
Description
The Sandvik Coromant 5735462 is a solid carbide indexable insert, grade 1025, TiAlN/TiN coated.
Specifications
Coating finishTiAlN/TiN
Coating processPVD
Corner radius0.0020
Hole diameter0.1890
Included angle60
Insert handRight Hand
Insert materialSolid Carbide
Insert size code3
Insert styleMAT
Manufacturers catalog numberMATR 3 60-A 1025
Manufacturer grade1025
Number of teeth per side1
Pitch (mm)0.20-1.00
Thickness in1/8
Threads per inch24-80
Thread standard60 Deg V
Thread typeExternal
