Sandvik Coromant

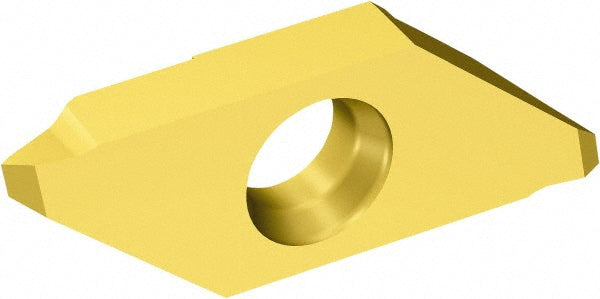

MATL 3 60-C 1025 Carbide Insert, Grade 1025, TiAlN - Sandvik Coromant 5735476
MFR# 5735476ISO/ANSI# MATL 3 60-C 1025Series CoroCut XS
$58.10List $74.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1025
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5735476 is a MATL 3 60-C 1025 carbide indexable insert, grade 1025, TiAlN coated.
Specifications
Coating finishTiAlN
Coating processPVD
Corner radius0.0020
External pitch0.35-1.00 mm; 24-72 TPI
Finish coatingTiAlN/TiN
Included angle60degree
Insert handLeft Hand
Insert materialCarbide
Insert size3
Insert styleMATL-C
Iso codeMATL 3 60-C 1025
Manufacturer grade1025
Thickness in1/8in
Thread standard60 Deg V
Thread typeExternal
Tip to top of insert0.1250
