Sandvik Coromant

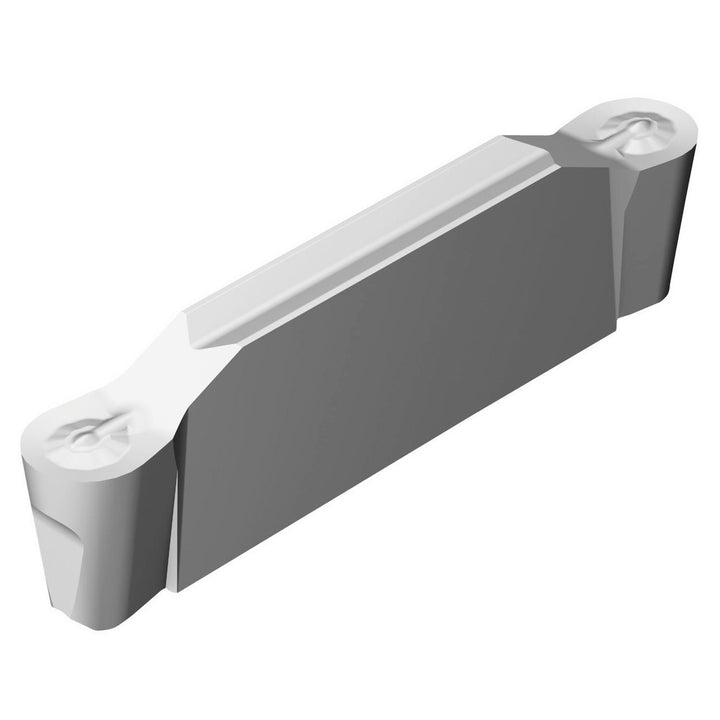

N123F2-0300-RO 1105 Solid Carbide Insert, TiAlN - Sandvik Coromant 5735608
MFR# 5735608ISO/ANSI# N123F2-0300-RO 1105Cat# N123F2-0300-RO 1105Series CoroCut 1-2
$49.35List $63.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5735608 is a N123F2-0300-RO 1105 solid carbide indexable insert, TiAlN coated.
Specifications
Chip breakerRO
Coating finishTiAlN
Coating processPVD
Corner radius0.0591
Cutting height0.1693
Cutting width0.1181
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeF
Insert sizeF2
Insert styleN123x2
Insert thickness0.1693
Iso codeN123F2-0300-RO 1105
Manufacturers catalog numberN123F2-0300-RO 1105
Maximum depth of cut0.7360
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0591
Multi use toolYes
Overall length0.7890
Overall width0.1180
RakePositive
