Sandvik Coromant

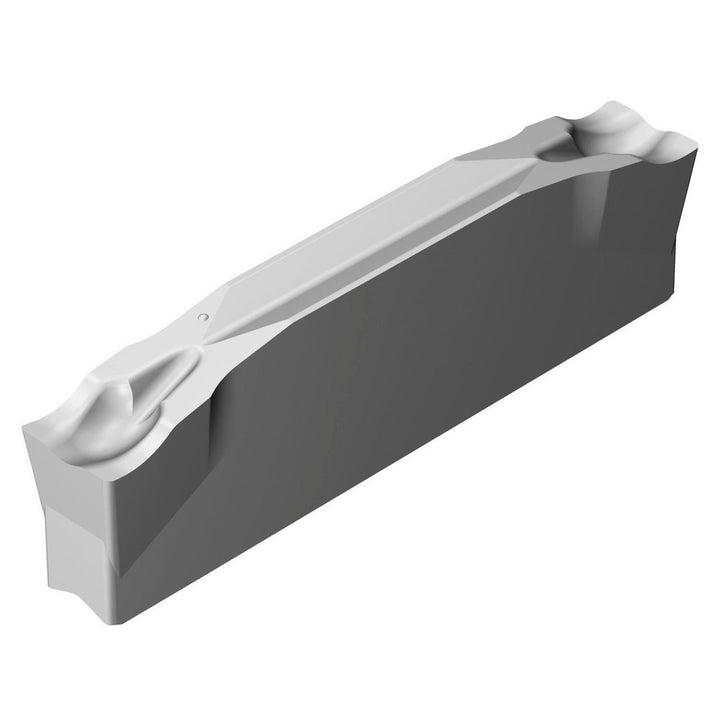

Solid Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5735652
MFR# 5735652Cat# N123E2-0200-0002-CM 1105Series CoroCut 1-2
$38.27List $49.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1105
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5735652 is a solid carbide indexable insert, grade 1105, TiAlN coated.
Specifications
ChipbreakerCM
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting width0.0787
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeE
Insert size codeE
Insert styleN123x2
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberN123E2-0200-0002-CM 1105
Manufacturer grade1105
Maximum depth of cut0.7480
Overall length0.7870
Overall width0.0787
Relief angle7.00
