Sandvik Coromant

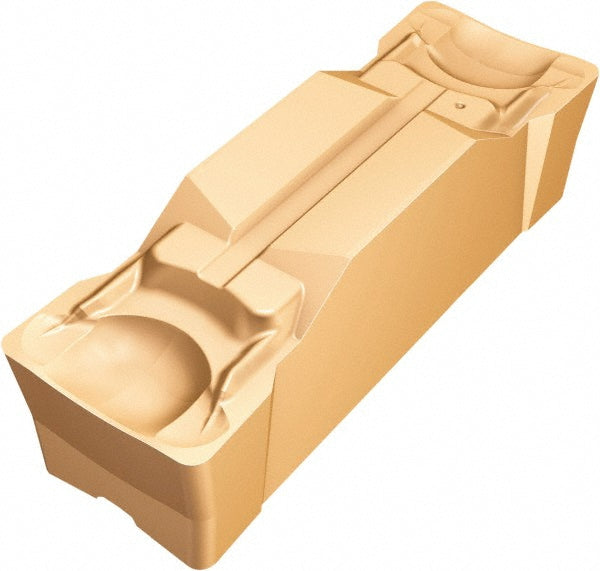

N123E2-0200-0002-GM 1125 Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5735786
MFR# 5735786ISO/ANSI# N123E2-0200-0002-GM 1125Cat# N123E2-0200-0002-GM 1125Series CoroCut 1-2
$40.08List $51.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5735786 is a N123E2-0200-0002-GM 1125 solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chip breakerGM
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting height0.1693
Cutting width0.0787
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeE
Insert sizeE
Insert styleN123
Insert thickness0.1693
Iso codeN123E2-0200-0002-GM 1125
Manufacturers catalog numberN123E2-0200-0002-GM 1125
Manufacturer grade1125
Maximum corner radius0.0118
Maximum depth of cut0.7402
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0039
Multi use toolYes
Overall length0.7795
Overall width0.0787
RakeNeutral
Rake angle7.00
