Sandvik Coromant

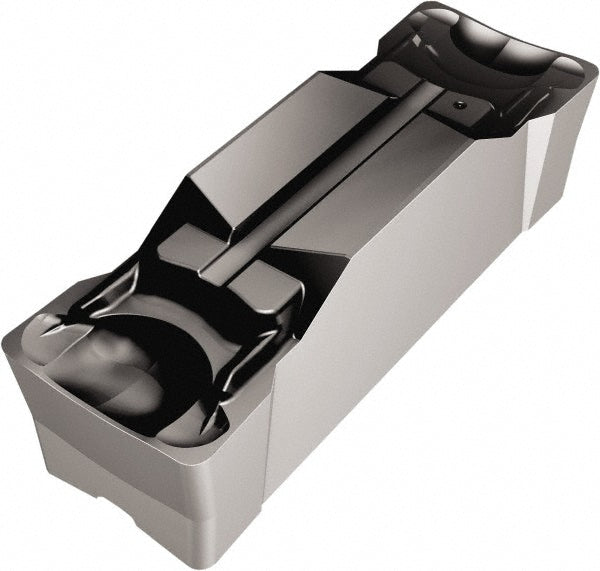

N123E2-0200-0002-GM 3115 Solid Carbide Insert, Grade 3115, TiCN - Sandvik Coromant 5735790
MFR# 5735790ISO/ANSI# N123E2-0200-0002-GM 3115Cat# N123E2-0200-0002-GM 3115Series CoroCut 1-2
$36.45List $46.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade3115
MaterialSolid Carbide
CoatingTiCN
Description
The Sandvik Coromant 5735790 is a N123E2-0200-0002-GM 3115 solid carbide indexable insert, grade 3115, TiCN coated.
Specifications
Chip breakerGM
Coating finishTiCN
Coating processMT-CVD
Corner radius0.0079
Cutting height0.1693
Cutting width0.0787
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeE
Insert sizeE
Insert styleN123
Insert thickness0.1693
Iso codeN123E2-0200-0002-GM 3115
Manufacturers catalog numberN123E2-0200-0002-GM 3115
Manufacturer grade3115
Maximum corner radius0.0118
Maximum depth of cut0.7402
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0039
Multi use toolYes
Overall length0.7748
Overall width0.0787
RakeNeutral
Rake angle7.00
