Sandvik Coromant

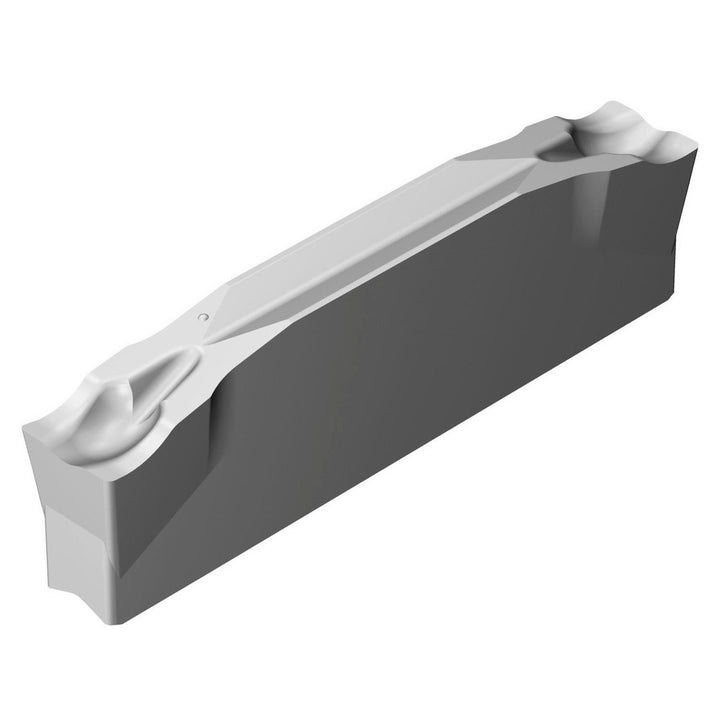

Solid Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5735821
MFR# 5735821Cat# N123F2-0250-0002-CM 1105Series CoroCut 1-2
$39.45List $50.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1105
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5735821 is a solid carbide indexable insert, grade 1105, TiAlN coated.
Specifications
ChipbreakerCM
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting width0.0984
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeF
Insert size codeF
Insert styleN123x2
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberN123F2-0250-0002-CM 1105
Manufacturer grade1105
Maximum depth of cut0.7441
Overall length0.7756
Overall width0.0984
Relief angle7.00
