Sandvik Coromant
MB-09R200-10-14R 1025 Solid Carbide Insert, TiAlN/TiN - Sandvik Coromant 5735843
MFR# 5735843ISO/ANSI# MB-09R200-10-14R 1025Cat# MB-09R200-10-14R 1025Series CoroCut MB
$37.05List $47.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiAlN/TiN
Description

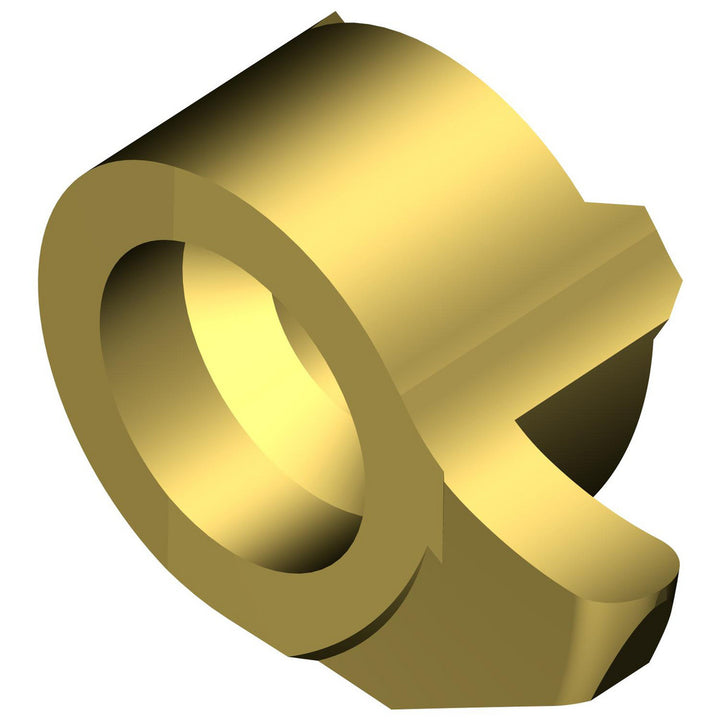

The Sandvik Coromant 5735843 is a MB-09R200-10-14R 1025 solid carbide indexable insert, TiAlN/TiN coated.
Specifications
Chip breakerR
Coating finishTiAlN/TiN
Coating processPVD
Corner radius0.0394
Cutting width0.0787
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size09
Insert size09
Insert styleMB..
Iso codeMB-09R200-10-14R 1025
Manufacturers catalog numberMB-09R200-10-14R 1025
Maximum depth of cut0.1580
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0394
Multi use toolYes
Overall length0.2090
Overall width0.0790
RakePositive
