Sandvik Coromant
N123G2-0318-0008-GF 1005 Solid Carbide Insert, Grade 1005, TiAlN/TiN - Sandvik Coromant 5735910
MFR# 5735910ISO/ANSI# N123G2-0318-0008-GF 1005Cat# N123G2-0318-0008-GF 1005Series CoroCut 1-2
$45.69List $58.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1005
MaterialSolid Carbide
CoatingTiAlN/TiN
Description

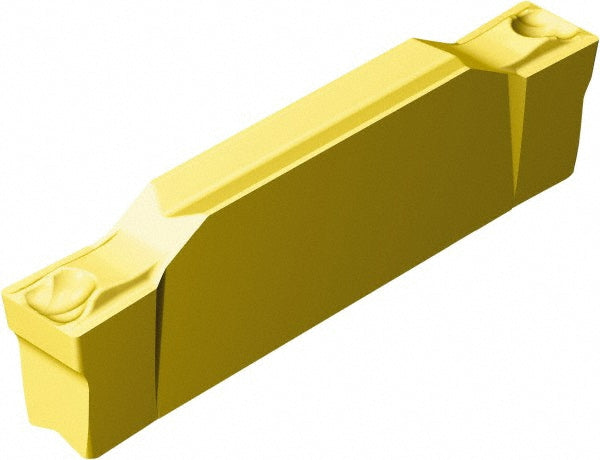

The Sandvik Coromant 5735910 is a N123G2-0318-0008-GF 1005 solid carbide indexable insert, grade 1005, TiAlN/TiN coated.
Specifications
Chip breakerGF
Coating finishTiAlN/TiN
Coating processPVD
Corner radius0.0315
Cutting height0.1693
Cutting width in1/8
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeG
Insert sizeG
Insert styleN123
Insert thickness0.1693
Iso codeN123G2-0318-0008-GF 1005
Manufacturers catalog numberN123G2-0318-0008-GF 1005
Manufacturer grade1005
Maximum corner radius0.0335
Maximum depth of cut0.7559
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0295
Multi use toolYes
Overall length0.7894
Overall width0.1252
RakeNeutral
Rake angle7.00
