Sandvik Coromant

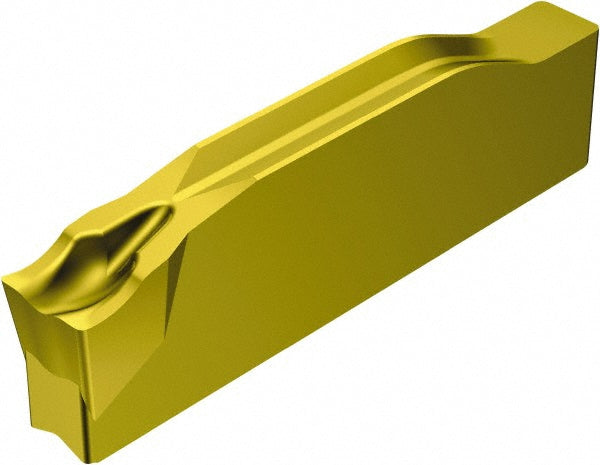

Solid Carbide Insert, Grade 2135, TiCN/Al2O3/TiN - Sandvik Coromant 5735931
MFR# 5735931Cat# N123H1-0400-0002-CM 2135Series CoroCut 1-2
$26.95List $34.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade2135
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5735931 is a solid carbide indexable insert, grade 2135, TiCN/Al2O3/TiN coated.
Specifications
ChipbreakerCM
Coating finishTiCN/Al2O3/TiN
Coating processMTCVD
Corner radius0.0079
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeH
Insert size codeH
Insert styleN123x1
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberN123H1-0400-0002-CM 2135
Manufacturer grade2135
Overall length0.9811
Overall width0.1575
Relief angle7.00
