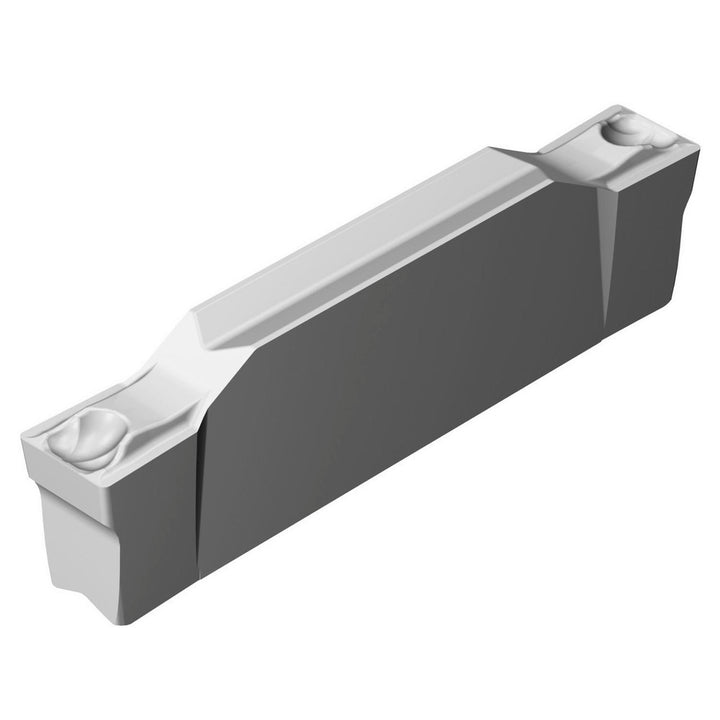

N123G2-0300-0002-GF 1105 Solid Carbide Insert, Grade 1105, TiAlN2 - Sandvik Coromant 5736009
MFR# 5736009ISO/ANSI# N123G2-0300-0002-GF 1105Cat# N123G2-0300-0002-GF 1105Series CoroCut 1-2
$53.13List $68.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1105
MaterialSolid Carbide
CoatingTiAlN2
Description
The Sandvik Coromant 5736009 is a N123G2-0300-0002-GF 1105 solid carbide indexable insert, grade 1105, TiAlN2 coated.
Specifications
Chip breakerGF
Coating finishTiAlN2
Coating processPVD
Corner radius0.0079
Cutting height0.1693
Cutting width0.1181
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeG
Insert sizeG
Insert styleN123
Insert thickness0.1693
Iso codeN123G2-0300-0002-GF 1105
Manufacturers catalog numberN123G2-0300-0002-GF 1105
Manufacturer grade1105
Maximum corner radius0.0098
Maximum depth of cut0.7559
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0059
Multi use toolYes
Overall length0.7894
Overall width0.1181
RakeNeutral
Rake angle7.00
