Sandvik Coromant

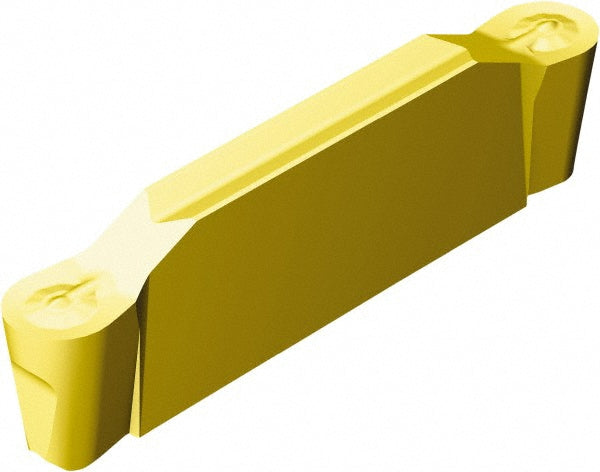

N123H2-0475-RO S05F Solid Carbide Insert, TiCN/Al2O3/TiN - Sandvik Coromant 5736041
MFR# 5736041ISO/ANSI# N123H2-0475-RO S05FCat# N123H2-0475-RO S05FSeries CoroCut 1-2
$54.42List $69.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5736041 is a N123H2-0475-RO S05F solid carbide indexable insert, TiCN/Al2O3/TiN coated.
Specifications
Chip breakerRO
Coating finishTiCN/Al2O3/TiN
Coating processMT-CVD
Corner radius0.0935
Cutting height0.1713
Cutting width0.1870
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeH
Insert sizeH2
Insert styleN123x2
Insert thickness0.1713
Iso codeN123H2-0475-RO S05F
Manufacturers catalog numberN123H2-0475-RO S05F
Maximum depth of cut0.9020
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0935
Multi use toolYes
Overall length0.9860
Overall width0.1870
RakePositive
