Sandvik Coromant

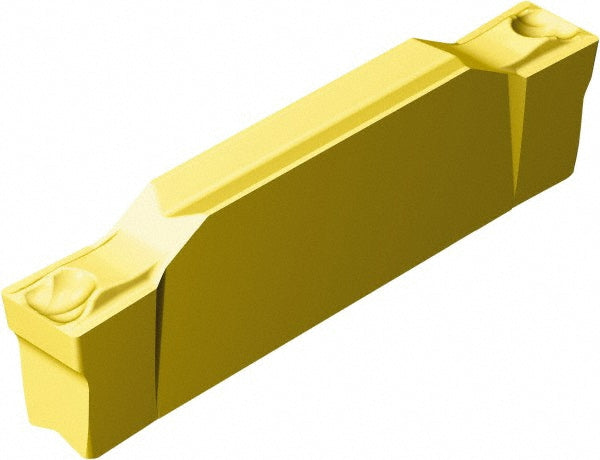

N123H204750004GF1005 Solid Carbide Insert, Grade 1005, TiAlN/TiN - Sandvik Coromant 5736046
MFR# 5736046ISO/ANSI# N123H204750004GF1005Series CoroCut 1-2
$50.77List $65.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1005
MaterialSolid Carbide
CoatingTiAlN/TiN
Description
The Sandvik Coromant 5736046 is a N123H204750004GF1005 solid carbide indexable insert, grade 1005, TiAlN/TiN coated.
Specifications
Chip breakerGF
Coating finishTiAlN/TiN
Coating processPVD
Corner radius0.0157
Cutting width0.1870
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeH
Insert sizeH2
Insert styleN123
Insert thickness0.1713
Iso codeN123H204750004GF1005
Lead angle0
Manufacturers catalog number5736046
Manufacturer grade1005
Maximum depth of cut0.9488
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Rake angle7.00
