Sandvik Coromant

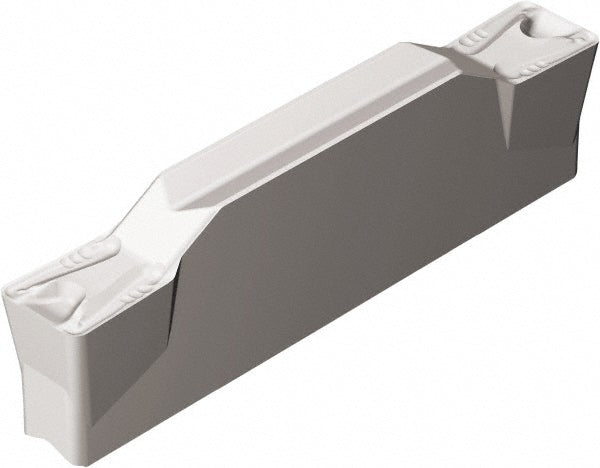

N123G2-0300-0004-TM H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5736100
MFR# 5736100ISO/ANSI# N123G2-0300-0004-TM H13ACat# N123G2-0300-0004-TM H13ASeries CoroCut 1-2
$41.10List $51.79
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeH13A
MaterialSolid Carbide
Description
The Sandvik Coromant 5736100 is a N123G2-0300-0004-TM H13A solid carbide indexable insert, grade H13A.
Specifications
Chip breakerTM
Corner radius0.0157
Cutting height0.1693
Cutting width0.1181
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeG
Insert sizeG
Insert styleN123
Insert thickness0.1693
Iso codeN123G2-0300-0004-TM H13A
Manufacturers catalog numberN123G2-0300-0004-TM H13A
Manufacturer gradeH13A
Maximum corner radius0.0197
Maximum depth of cut0.7244
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0118
Multi use toolYes
Overall length0.7819
Overall width0.1181
RakeNeutral
Rake angle7.00
