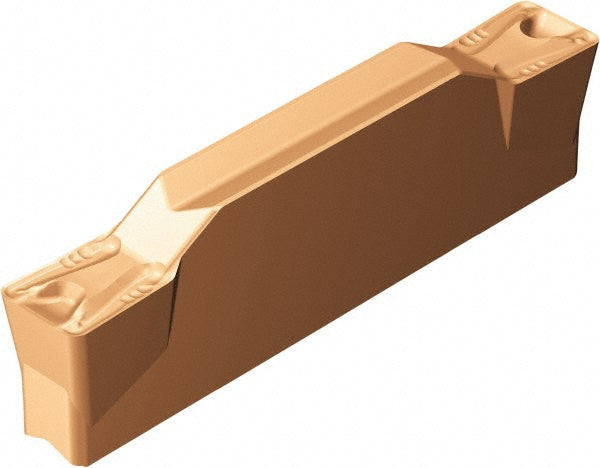

N123G2-0300-0004-TM 1145 Solid Carbide Insert, Grade 1145, TiAlN - Sandvik Coromant 5736102
MFR# 5736102ISO/ANSI# N123G2-0300-0004-TM 1145Cat# N123G2-0300-0004-TM 1145Series CoroCut 1-2
$44.45List $57.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1145
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5736102 is a N123G2-0300-0004-TM 1145 solid carbide indexable insert, grade 1145, TiAlN coated.
Specifications
Chip breakerTM
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Cutting height0.1693
Cutting width0.1181
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeG
Insert sizeG
Insert styleN123
Insert thickness0.1693
Iso codeN123G2-0300-0004-TM 1145
Manufacturers catalog numberN123G2-0300-0004-TM 1145
Manufacturer grade1145
Maximum corner radius0.0197
Maximum depth of cut0.7244
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0118
Multi use toolYes
Overall length0.7811
Overall width0.1181
RakeNeutral
Rake angle7.00
