Sandvik Coromant

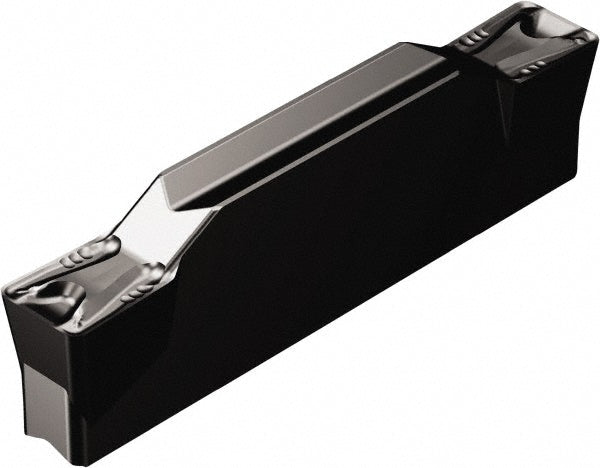

N123G2-0300-0004-TM 3115 Solid Carbide Insert, Grade 3115, TiCN - Sandvik Coromant 5736104
MFR# 5736104ISO/ANSI# N123G2-0300-0004-TM 3115Cat# N123G2-0300-0004-TM 3115Series CoroCut 1-2
$40.45List $51.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade3115
MaterialSolid Carbide
CoatingTiCN
Description
The Sandvik Coromant 5736104 is a N123G2-0300-0004-TM 3115 solid carbide indexable insert, grade 3115, TiCN coated.
Specifications
Chip breakerTM
Coating finishTiCN
Coating processMT-CVD
Corner radius0.0157
Cutting height0.1693
Cutting width0.1181
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeG
Insert sizeG2
Insert styleN123x2
Insert thickness0.1693
Iso codeN123G2-0300-0004-TM 3115
Manufacturers catalog numberN123G2-0300-0004-TM 3115
Manufacturer grade3115
Maximum depth of cut0.7240
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall width0.1693
RakePositive
