Sandvik Coromant

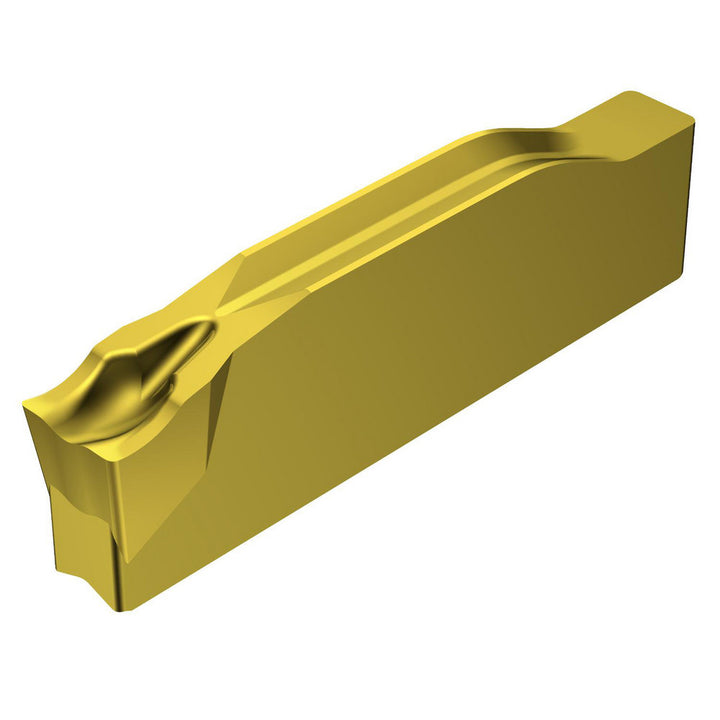

Solid Carbide Insert, Grade 2135, TiCN/Al2O3/TiN - Sandvik Coromant 5736180
MFR# 5736180Series CoroCut 1-2
$23.58List $30.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade2135
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5736180 is a solid carbide indexable insert, grade 2135, TiCN/Al2O3/TiN coated.
Specifications
ChipbreakerCM
Coating finishTiCN/Al2O3/TiN
Coating processMTCVD
Corner radius0.0079
Cutting tool applicationGrooving; Parting; Profiling
Cutting width0.0984
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeF
Insert size codeF
Insert styleN123F1-...
Lead angle0
Lead angle directionNeutral
Manufacturers catalog number5736180
Manufacturer grade2135
Relief angle5.00
Width tolerance+0.004/-0 (Inch)
