Sandvik Coromant

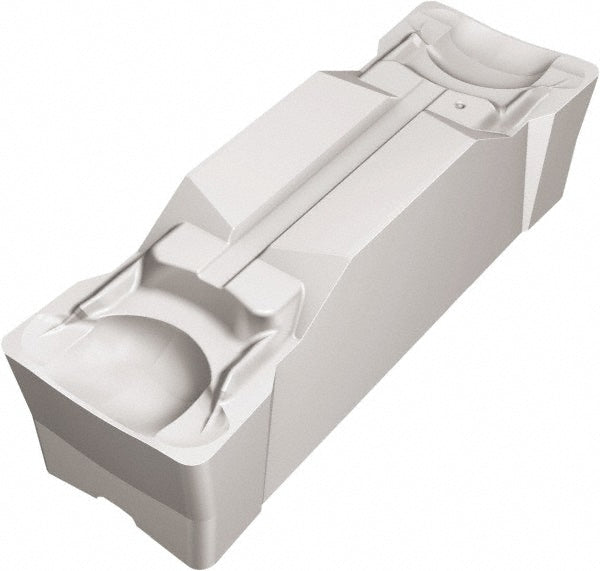

N123H2-0400-0003-GM H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5736200
MFR# 5736200ISO/ANSI# N123H2-0400-0003-GM H13ACat# N123H2-0400-0003-GM H13ASeries CoroCut 1-2
$34.32List $44.01
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeH13A
MaterialSolid Carbide
Description
The Sandvik Coromant 5736200 is a N123H2-0400-0003-GM H13A solid carbide indexable insert, grade H13A.
Specifications
Chip breakerGM
Corner radius0.0118
Cutting height0.1713
Cutting width0.1575
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeH
Insert sizeH
Insert styleN123
Insert thickness0.1713
Iso codeN123H2-0400-0003-GM H13A
Manufacturers catalog numberN123H2-0400-0003-GM H13A
Manufacturer gradeH13A
Maximum corner radius0.0157
Maximum depth of cut0.9055
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0079
Multi use toolYes
Overall length0.9791
Overall width0.1575
RakeNeutral
Rake angle7.00
