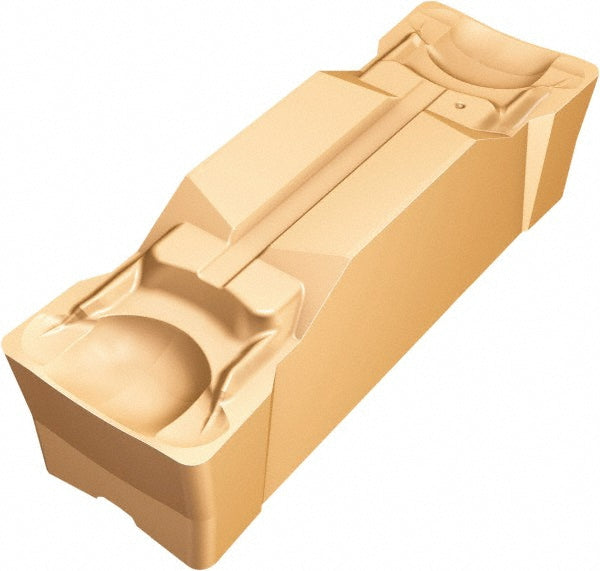

N123H2-0400-0003-GM 1125 Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5736201
MFR# 5736201ISO/ANSI# N123H2-0400-0003-GM 1125Cat# N123H2-0400-0003-GM 1125Series CoroCut 1-2
$43.74List $56.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5736201 is a N123H2-0400-0003-GM 1125 solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chip breakerGM
Coating finishTiAlN
Coating processPVD
Corner radius0.0118
Cutting height0.1713
Cutting width0.1575
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeH
Insert sizeH
Insert styleN123
Insert thickness0.1713
Iso codeN123H2-0400-0003-GM 1125
Manufacturers catalog numberN123H2-0400-0003-GM 1125
Manufacturer grade1125
Maximum corner radius0.0157
Maximum depth of cut0.9055
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0079
Multi use toolYes
Overall length0.9713
Overall width0.1575
RakeNeutral
Rake angle7.00
