Sandvik Coromant

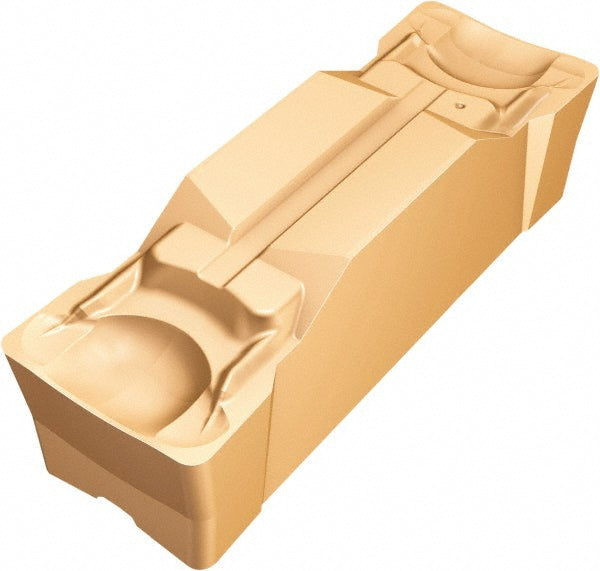

N123J2-0475-0003-GM 1125 Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5736235
MFR# 5736235ISO/ANSI# N123J2-0475-0003-GM 1125Cat# N123J2-0475-0003-GM 1125Series CoroCut 1-2
$49.93List $64.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5736235 is a N123J2-0475-0003-GM 1125 solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chip breakerGM
Coating finishTiAlN
Coating processPVD
Corner radius0.0118
Cutting height0.1713
Cutting width in3/16
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeJ
Insert sizeJ
Insert styleN123
Insert thickness0.1713
Iso codeN123J2-0475-0003-GM 1125
Manufacturers catalog numberN123J2-0475-0003-GM 1125
Manufacturer grade1125
Maximum corner radius0.0157
Maximum depth of cut0.8898
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0079
Multi use toolYes
Overall length0.9677
Overall width0.1870
RakeNeutral
Rake angle7.00
