Sandvik Coromant

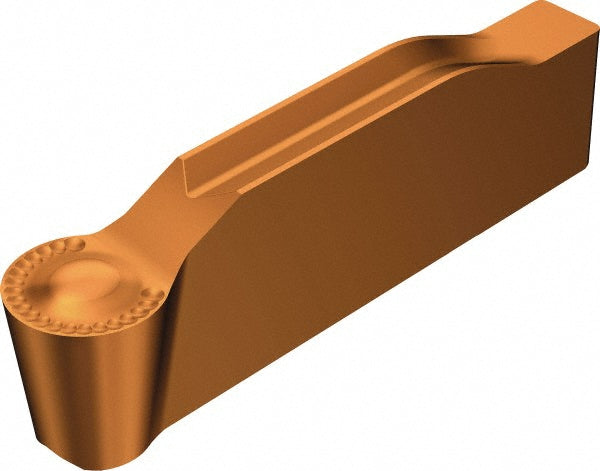

N123J1-0600-RM 1125 Solid Carbide Insert, TiAlN - Sandvik Coromant 5736249
MFR# 5736249ISO/ANSI# N123J1-0600-RM 1125Cat# N123J1-0600-RM 1125Series CoroCut 1-2
$32.84List $42.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5736249 is a N123J1-0600-RM 1125 solid carbide indexable insert, TiAlN coated.
Specifications
Chip breakerRM
Coating finishTiAlN
Coating processPVD
Corner radius0.1181
Cutting height0.1713
Cutting width0.2362
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeJ
Insert sizeJ1
Insert styleN123x1
Insert thickness0.1713
Iso codeN123J1-0600-RM 1125
Manufacturers catalog numberN123J1-0600-RM 1125
Maximum depth of cut0.1102
Maximum depth of cut range0.1000 to 0.1500
Minimum corner radius0.1181
Multi use toolYes
Overall width0.2360
RakePositive
