Sandvik Coromant

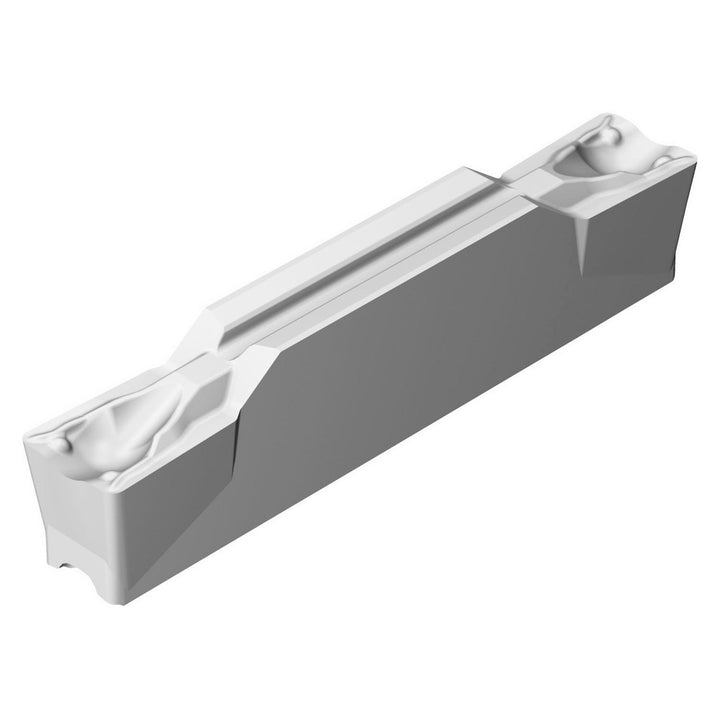

N123J2-0500-0004-TF 1105 Solid Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5736314
MFR# 5736314ISO/ANSI# N123J2-0500-0004-TF 1105Cat# N123J2-0500-0004-TF 1105Series CoroCut 1-2
$49.93List $64.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1105
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5736314 is a N123J2-0500-0004-TF 1105 solid carbide indexable insert, grade 1105, TiAlN coated.
Specifications
Chip breakerTF
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Cutting height0.1713
Cutting width0.1969
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeJ
Insert sizeJ2
Insert styleN123x2
Insert thickness0.1713
Iso codeN123J2-0500-0004-TF 1105
Manufacturers catalog numberN123J2-0500-0004-TF 1105
Manufacturer grade1105
Maximum depth of cut0.9170
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall width0.1713
RakePositive
