Sandvik Coromant

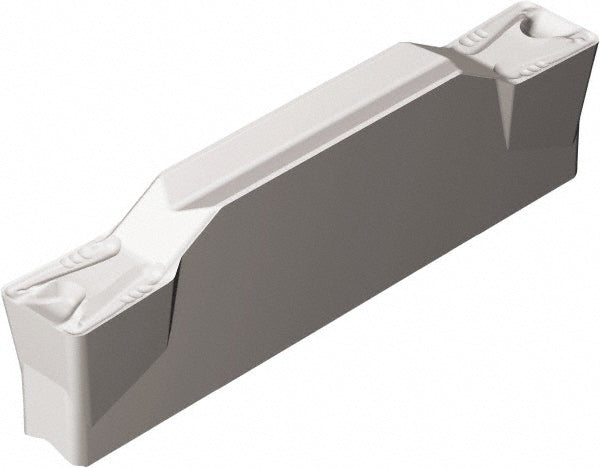

N123J205000008TMH13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5736331
MFR# 5736331ISO/ANSI# N123J205000008TMH13ASeries CoroCut 1-2
$36.21List $46.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeH13A
MaterialSolid Carbide
Description
The Sandvik Coromant 5736331 is a N123J205000008TMH13A solid carbide indexable insert, grade H13A.
Specifications
Chip breakerTF
Corner radius (mm)0.80
Cutting width (mm)5.00
Insert handNeutral
Insert materialSolid Carbide
Insert size500
Insert styleN123J2
Insert thickness4.35
Iso codeN123J205000008TMH13A
Manufacturers catalog number5736331
Manufacturer gradeH13A
Maximum depth of cut (mm)2.70
Maximum depth of cut range (mm)2.00 to 3.00
Rake angle7.00
