Sandvik Coromant

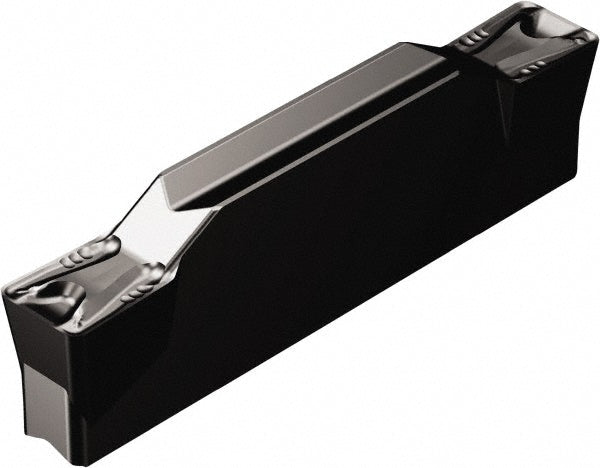

N123J2-0500-0008-TM 3115 Solid Carbide Insert, Grade 3115, TiCN - Sandvik Coromant 5736335
MFR# 5736335ISO/ANSI# N123J2-0500-0008-TM 3115Cat# N123J2-0500-0008-TM 3115Series CoroCut 1-2
$42.02List $53.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade3115
MaterialSolid Carbide
CoatingTiCN
Description
The Sandvik Coromant 5736335 is a N123J2-0500-0008-TM 3115 solid carbide indexable insert, grade 3115, TiCN coated.
Specifications
Chip breakerTM
Coating finishTiCN
Coating processMT-CVD
Corner radius0.0315
Cutting height0.1713
Cutting width0.1969
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeJ
Insert sizeJ2
Insert styleN123x2
Insert thickness0.1713
Iso codeN123J2-0500-0008-TM 3115
Manufacturers catalog numberN123J2-0500-0008-TM 3115
Manufacturer grade3115
Maximum depth of cut0.9060
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall width0.1713
RakePositive
