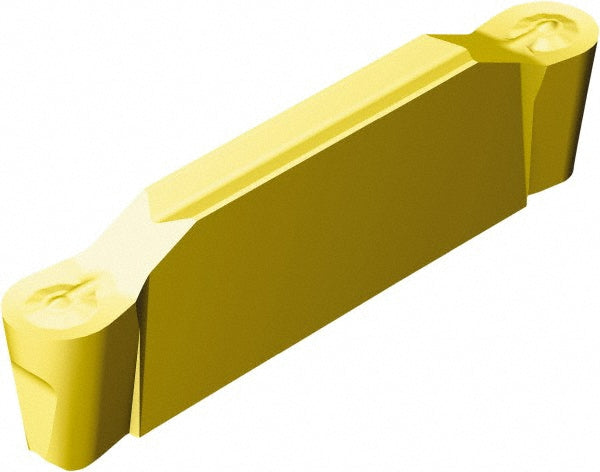

N123H2-0396-RO 1005 Solid Carbide Insert, TiAlN/TiN - Sandvik Coromant 5736407
MFR# 5736407ISO/ANSI# N123H2-0396-RO 1005Cat# N123H2-0396-RO 1005Series CoroCut 1-2
$48.42List $62.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiAlN/TiN
Description
The Sandvik Coromant 5736407 is a N123H2-0396-RO 1005 solid carbide indexable insert, TiAlN/TiN coated.
Specifications
Chip breakerRO
Coating finishTiAlN/TiN
Coating processPVD
Corner radius0.0780
Cutting height0.1713
Cutting width0.1560
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeH
Insert sizeH2
Insert styleN123x2
Insert thickness0.1713
Iso codeN123H2-0396-RO 1005
Manufacturers catalog numberN123H2-0396-RO 1005
Maximum depth of cut0.9170
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0780
Multi use toolYes
Overall length0.9860
Overall width0.1560
RakePositive
