Sandvik Coromant

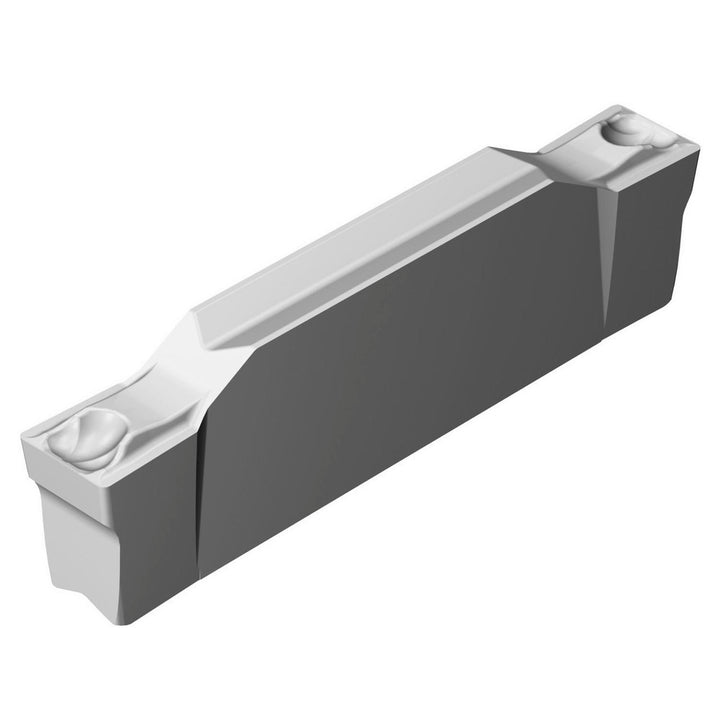

N123H203960002GF1105 Solid Carbide Insert, Grade 1105, TiAlN2 - Sandvik Coromant 5736414
MFR# 5736414ISO/ANSI# N123H203960002GF1105Series CoroCut 1-2
$56.25List $72.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1105
MaterialSolid Carbide
CoatingTiAlN2
Description
The Sandvik Coromant 5736414 is a N123H203960002GF1105 solid carbide indexable insert, grade 1105, TiAlN2 coated.
Specifications
Chip breakerGF
Coating finishTiAlN2
Coating processPVD
Corner radius0.0079
Cutting width0.1559
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeH
Insert sizeH2
Insert styleN123
Insert thickness0.1713
Iso codeN123H203960002GF1105
Lead angle0
Manufacturers catalog number5736414
Manufacturer grade1105
Maximum depth of cut0.9606
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Rake angle7.00
