Sandvik Coromant
Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5736423
MFR# 5736423Cat# N123T3-0100-0000-CS 1125Series CoroCut 3
$41.69List $53.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description

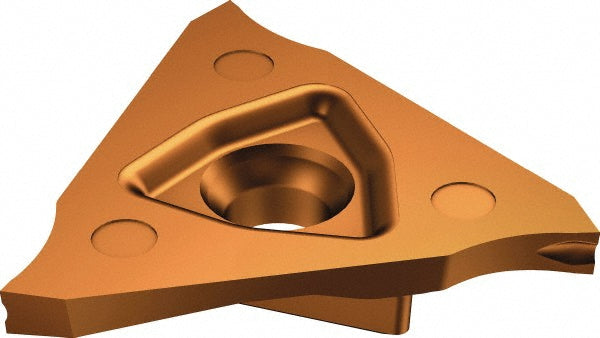

The Sandvik Coromant 5736423 is a solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
ChipbreakerCS
Coating finishTiAlN
Coating processPVD
Cutting width0.0394
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeT
Insert size codeT
Insert styleN123T3
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberN123T3-0100-0000-CS 1125
Manufacturer grade1125
Maximum depth of cut0.1693
Overall length0.3571
Overall width0.0394
Relief angle7.00
