Sandvik Coromant
N123R1-1500-0010-GR 1125 Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5736562
MFR# 5736562ISO/ANSI# N123R1-1500-0010-GR 1125Cat# N123R1-1500-0010-GR 1125Series CoroCut 1-2
$57.21List $72.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description

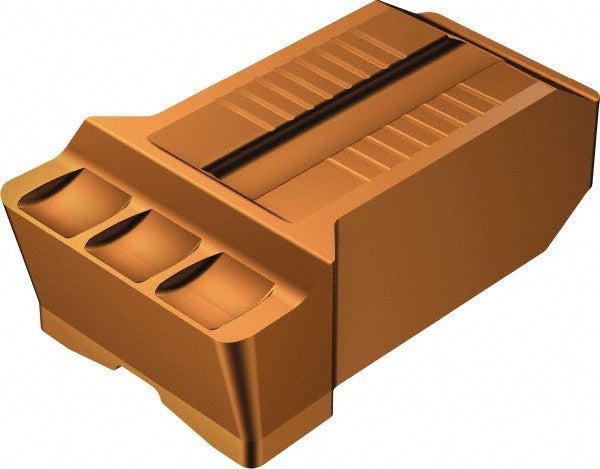

The Sandvik Coromant 5736562 is a N123R1-1500-0010-GR 1125 solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chip breakerGR
Coating finishTiAlN
Coating processPVD
Corner radius0.0472
Cutting height0.2949
Cutting width0.5906
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeR
Insert sizeR
Insert styleN123
Insert thickness0.2949
Iso codeN123R1-1500-0010-GR 1125
Manufacturers catalog numberN123R1-1500-0010-GR 1125
Manufacturer grade1125
Maximum corner radius0.0512
Minimum corner radius0.0433
Multi use toolYes
Overall length in1
Overall width0.5906
RakeNeutral
Rake angle13.00
