Sandvik Coromant

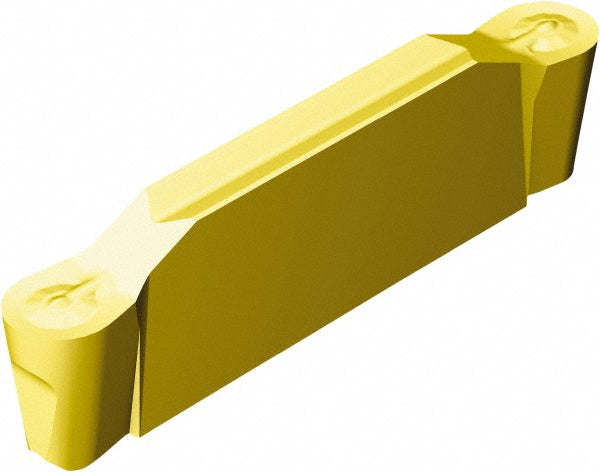

N123J2-0635-RO S05F Solid Carbide Insert, TiCN/Al2O3/TiN - Sandvik Coromant 5736672
MFR# 5736672ISO/ANSI# N123J2-0635-RO S05FCat# N123J2-0635-RO S05FSeries CoroCut 1-2
$58.16List $74.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5736672 is a N123J2-0635-RO S05F solid carbide indexable insert, TiCN/Al2O3/TiN coated.
Specifications
Chip breakerRO
Coating finishTiCN/Al2O3/TiN
Coating processMT-CVD
Corner radius in1/8
Cutting height0.1713
Cutting width in1/4
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeJ
Insert sizeJ2
Insert styleN123x2
Insert thickness0.1713
Iso codeN123J2-0635-RO S05F
Manufacturers catalog numberN123J2-0635-RO S05F
Maximum depth of cut0.8660
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.1250
Multi use toolYes
Overall length0.9860
Overall width0.2500
RakePositive
