N123J2-0635-RO 1125 Solid Carbide Insert, TiAlN - Sandvik Coromant 5736674

Sandvik Coromant

N123J2-0635-RO 1125 Solid Carbide Insert, TiAlN - Sandvik Coromant 5736674

MFR# 5736674ISO/ANSI# N123J2-0635-RO 1125Cat# N123J2-0635-RO 1125Series CoroCut 1-2

$69.83List $88.00 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
MaterialSolid Carbide
CoatingTiAlN

Description

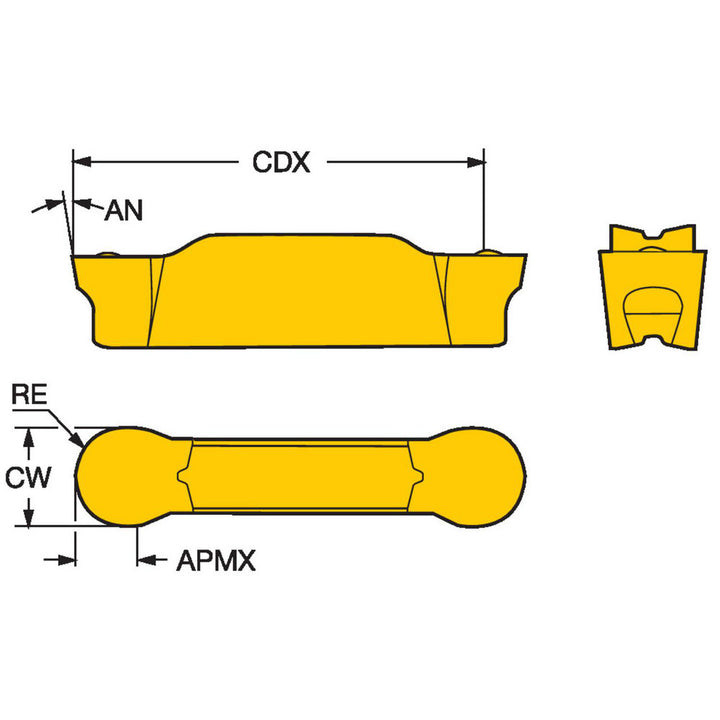

The Sandvik Coromant 5736674 is a N123J2-0635-RO 1125 solid carbide indexable insert, TiAlN coated.

Specifications

Chip breakerRO
Coating finishTiAlN
Coating processPVD
Corner radius in1/8
Cutting height0.1713
Cutting width in1/4
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeJ
Insert sizeJ2
Insert styleN123x2
Insert thickness0.1713
Iso codeN123J2-0635-RO 1125
Manufacturers catalog numberN123J2-0635-RO 1125
Maximum depth of cut0.8660
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.1250
Multi use toolYes
Overall length0.9860
Overall width0.2500
RakePositive
