Sandvik Coromant

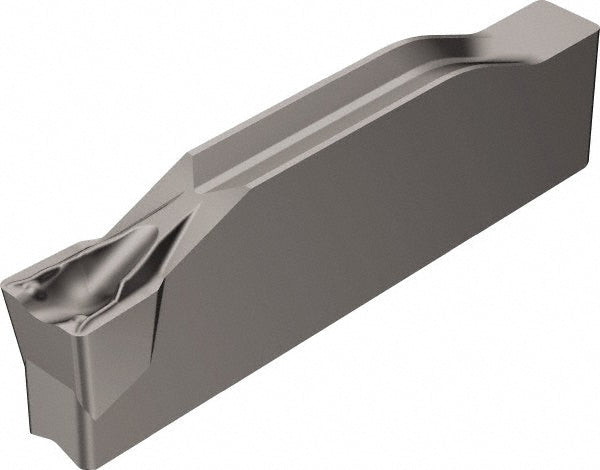

N123K1-0600-0004-TF H13A Solid Carbide Insert, Grade H13A - Sandvik Coromant 5736677
MFR# 5736677ISO/ANSI# N123K1-0600-0004-TF H13ACat# N123K1-0600-0004-TF H13ASeries CoroCut 1-2
$31.71List $39.96
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeH13A
MaterialSolid Carbide
Description
The Sandvik Coromant 5736677 is a N123K1-0600-0004-TF H13A solid carbide indexable insert, grade H13A.
Specifications
Chip breakerTF
Corner radius0.0157
Cutting height0.1713
Cutting width0.2362
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeK
Insert sizeK1
Insert styleN123x1
Insert thickness0.1713
Iso codeN123K1-0600-0004-TF H13A
Manufacturers catalog numberN123K1-0600-0004-TF H13A
Manufacturer gradeH13A
Maximum depth of cut0.1339
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall width0.1713
RakePositive
