Sandvik Coromant

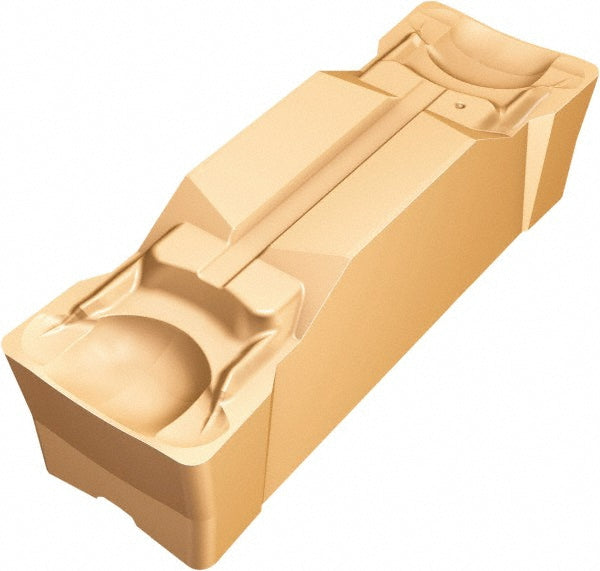

N123K2-0600-0004-GM 1125 Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5736701
MFR# 5736701ISO/ANSI# N123K2-0600-0004-GM 1125Cat# N123K2-0600-0004-GM 1125Series CoroCut 1-2
$66.24List $83.48
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5736701 is a N123K2-0600-0004-GM 1125 solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chip breakerGM
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Cutting height0.1713
Cutting width0.2362
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeK
Insert sizeK
Insert styleN123
Insert thickness0.1713
Iso codeN123K2-0600-0004-GM 1125
Manufacturers catalog numberN123K2-0600-0004-GM 1125
Manufacturer grade1125
Maximum corner radius0.0197
Maximum depth of cut0.8937
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0118
Multi use toolYes
Overall length0.9689
Overall width0.2362
RakeNeutral
Rake angle7.00
