Sandvik Coromant

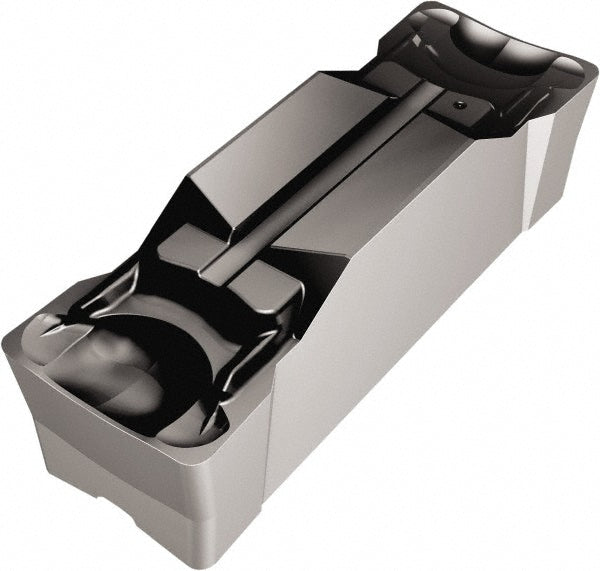

N123K2-0600-0004-GM 3115 Solid Carbide Insert, Grade 3115, TiCN - Sandvik Coromant 5736704
MFR# 5736704ISO/ANSI# N123K2-0600-0004-GM 3115Cat# N123K2-0600-0004-GM 3115Series CoroCut 1-2
$47.40List $60.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade3115
MaterialSolid Carbide
CoatingTiCN
Description
The Sandvik Coromant 5736704 is a N123K2-0600-0004-GM 3115 solid carbide indexable insert, grade 3115, TiCN coated.
Specifications
Chip breakerGM
Coating finishTiCN
Coating processMT-CVD
Corner radius0.0157
Cutting height0.1713
Cutting width0.2362
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeK
Insert sizeK
Insert styleN123
Insert thickness0.1713
Iso codeN123K2-0600-0004-GM 3115
Manufacturers catalog numberN123K2-0600-0004-GM 3115
Manufacturer grade3115
Maximum corner radius0.0197
Maximum depth of cut0.8937
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0118
Multi use toolYes
Overall length0.9618
Overall width0.2362
RakeNeutral
Rake angle7.00
