Sandvik Coromant
Solid Carbide Insert, Grade 235, TiCN/TiN - Sandvik Coromant 5736759
MFR# 5736759Cat# N151.2-250-4E 235Series T-Max Q-Cut
$20.00List $25.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade235
MaterialSolid Carbide
CoatingTiCN/TiN
Description

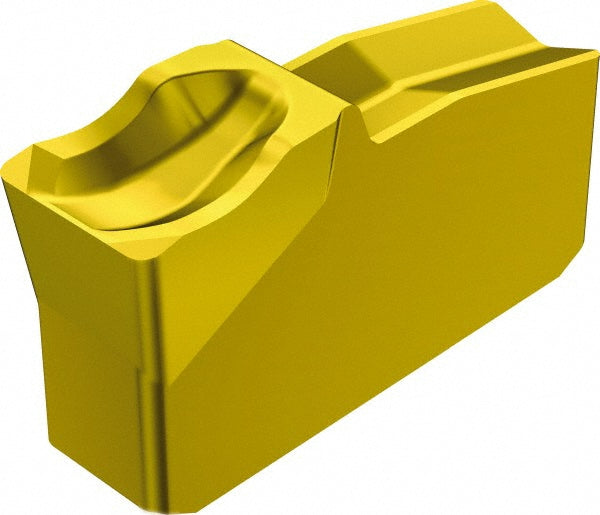

The Sandvik Coromant 5736759 is a solid carbide indexable insert, grade 235, TiCN/TiN coated.
Specifications
Chipbreaker4E
Coating finishTiCN/TiN
Coating processCVD
Corner radius0.0118
Cutting width0.0984
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size25
Insert size code25
Insert styleN151.2
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberN151.2-250-4E 235
Manufacturer grade235
Overall width0.0984
Relief angle7.00
