Sandvik Coromant
Solid Carbide Insert, Grade 2135, TiCN/Al2O3/TiN - Sandvik Coromant 5736768
MFR# 5736768Cat# N151.2-250-5E 2135Series T-Max Q-Cut
$20.00List $25.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade2135
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description

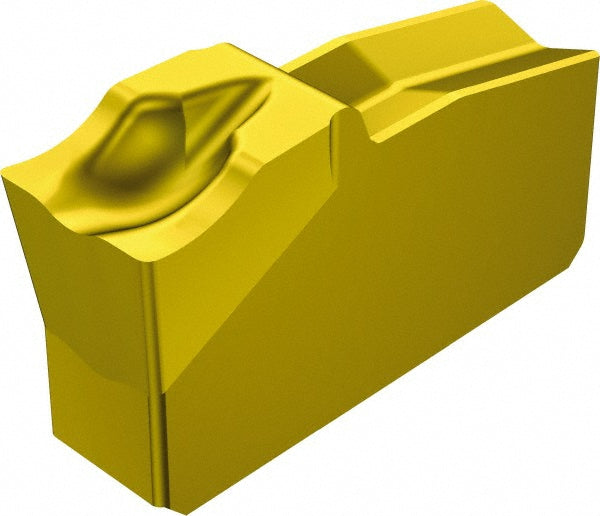

The Sandvik Coromant 5736768 is a solid carbide indexable insert, grade 2135, TiCN/Al2O3/TiN coated.
Specifications
Chipbreaker5E
Coating finishTiCN/Al2O3/TiN
Coating processMTCVD
Corner radius0.0079
Cutting width0.0984
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size25
Insert size code25
Insert styleN151.2
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberN151.2-250-5E 2135
Manufacturer grade2135
Overall length0.2150
Overall width0.0984
Relief angle7.00
