Sandvik Coromant

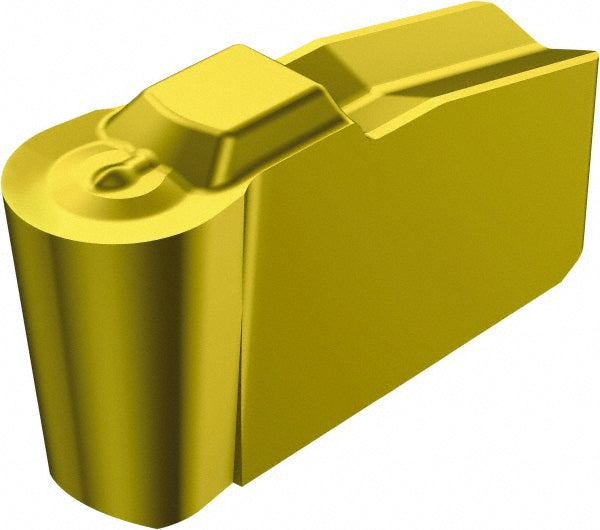

N151.2-300-30-4P 235 Solid Carbide Insert, TiCN/TiN - Sandvik Coromant 5736833
MFR# 5736833ISO/ANSI# N151.2-300-30-4P 235Cat# N151.2-300-30-4P 235Series T-Max Q-Cut
$34.15List $43.04
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiCN/TiN
Description
The Sandvik Coromant 5736833 is a N151.2-300-30-4P 235 solid carbide indexable insert, TiCN/TiN coated.
Specifications
Chip breaker4P
Coating finishTiCN/TiN
Coating processCVD
Corner radius0.0591
Cutting height0.2672
Cutting width0.1181
Insert handNeutral
Insert materialSolid Carbide
Insert seat size30
Insert size30
Insert styleN151.2
Insert thickness0.2672
Iso codeN151.2-300-30-4P 235
Manufacturers catalog numberN151.2-300-30-4P 235
Maximum depth of cut0.0512
Maximum depth of cut range0.0000 to 0.0750
Minimum corner radius0.0591
Multi use toolYes
Overall width0.1180
RakePositive
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
