Sandvik Coromant

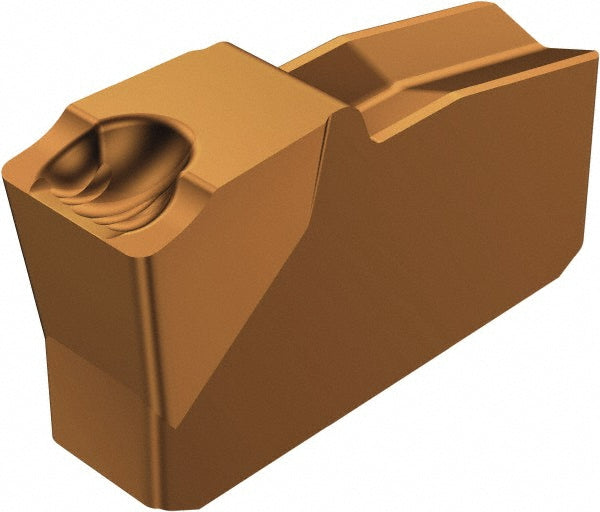

N151.2-A187-40-5G 1125 Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5736877
MFR# 5736877ISO/ANSI# N151.2-A187-40-5G 1125Cat# N151.2-A187-40-5G 1125Series T-Max Q-Cut
$22.02List $28.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5736877 is a N151.2-A187-40-5G 1125 solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chip breaker5G
Coating finishTiAlN
Coating processPVD
Corner radius0.0100
Cutting height0.3191
Cutting width in3/16
Insert handNeutral
Insert materialSolid Carbide
Insert seat size40
Insert size40
Insert styleN151.2
Insert thickness0.3191
Iso codeN151.2-A187-40-5G 1125
Manufacturers catalog numberN151.2-A187-40-5G 1125
Manufacturer grade1125
Maximum corner radius0.0140
Minimum corner radius0.0060
Multi use toolYes
Overall length0.2677
Overall width0.1870
RakeNeutral
Rake angle7.00
