Sandvik Coromant

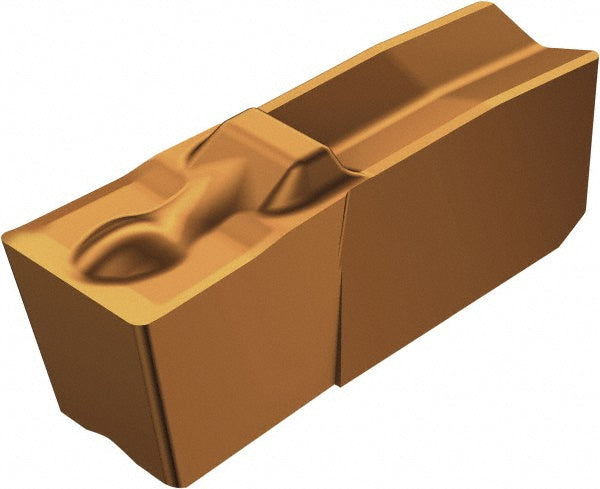

N151.3-A189-40-4G 1125 Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5736895
MFR# 5736895ISO/ANSI# N151.3-A189-40-4G 1125Cat# N151.3-A189-40-4G 1125Series T-Max Q-Cut
$25.30List $32.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5736895 is a N151.3-A189-40-4G 1125 solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chip breaker4G
Coating finishTiAlN
Coating processPVD
Corner radius0.0220
Cutting height0.2404
Cutting width0.1890
Insert handNeutral
Insert materialSolid Carbide
Insert seat size40
Insert size40
Insert styleN151.3
Insert thickness0.2404
Iso codeN151.3-A189-40-4G 1125
Manufacturers catalog numberN151.3-A189-40-4G 1125
Manufacturer grade1125
Maximum corner radius0.0240
Minimum corner radius0.0200
Multi use toolYes
Overall length0.2661
Overall width0.1890
RakeNeutral
Rake angle11.00
