Sandvik Coromant

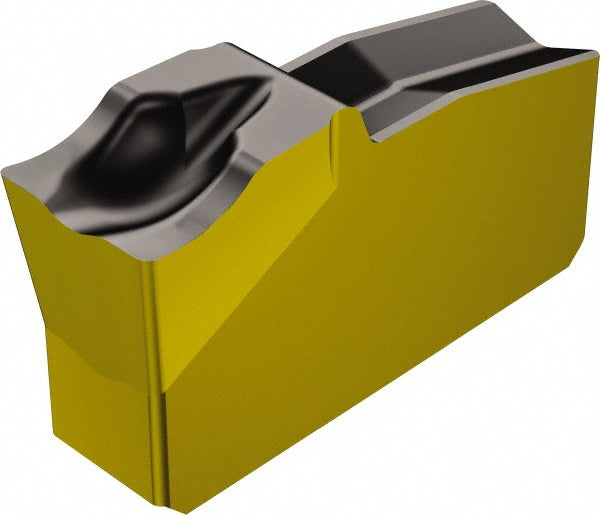

Carbide Insert, Grade 4225, TiCN/Al2O3/TiN - Sandvik Coromant 5736916
MFR# 5736916Series T-Max Q-Cut
$21.39List $27.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4225
MaterialCarbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5736916 is a carbide indexable insert, grade 4225, TiCN/Al2O3/TiN coated.
Specifications
Chipbreaker5E
Coating finishTiCN/Al2O3/TiN
Coating processCVD
Corner radius0.0079
Cutting tool applicationParting
Cutting width0.0787
Insert handNeutral
Insert holding methodClamp
Insert materialCarbide
Insert seat size20
Insert size code20
Insert styleN151.2
Lead angle0
Manufacturers catalog number5736916
Manufacturer grade4225
Relief angle7.00
