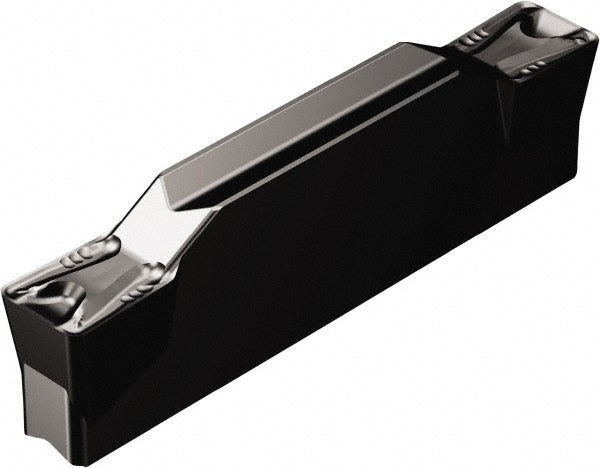

N123L2-0800-0008-TM 3115 Solid Carbide Insert, Grade 3115, TiCN - Sandvik Coromant 5736932

Sandvik Coromant

N123L2-0800-0008-TM 3115 Solid Carbide Insert, Grade 3115, TiCN - Sandvik Coromant 5736932

MFR# 5736932ISO/ANSI# N123L2-0800-0008-TM 3115Cat# N123L2-0800-0008-TM 3115Series CoroCut 1-2

$72.07List $90.83 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Grade3115
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5736932 is a N123L2-0800-0008-TM 3115 solid carbide indexable insert, grade 3115, TiCN coated.

Specifications

Chip breakerTM
Coating finishTiCN
Coating processMT-CVD
Corner radius0.0315
Cutting height0.2382
Cutting width0.3150
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeL
Insert sizeL
Insert styleN123
Insert thickness0.2382
Iso codeN123L2-0800-0008-TM 3115
Manufacturers catalog numberN123L2-0800-0008-TM 3115
Manufacturer grade3115
Maximum corner radius0.0354
Maximum depth of cut1.1024
Maximum depth of cut range1.0000+
Minimum corner radius0.0276
Multi use toolYes
Overall length1.1689
Overall width0.3150
RakeNeutral
Rake angle7.00
