Sandvik Coromant

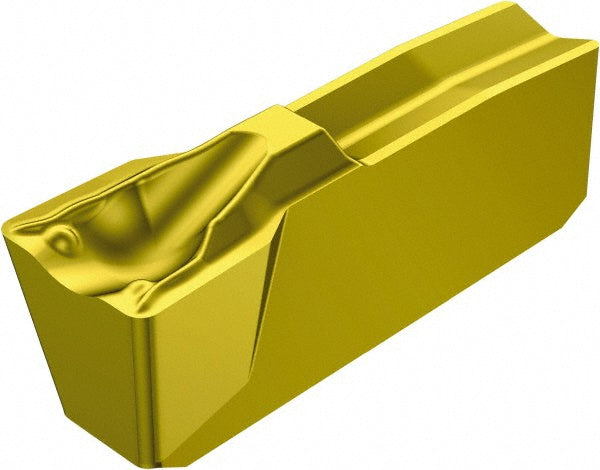

N1513400307G2135 Solid Carbide Insert, Grade 2135, TiCN/Al2O3/TiN - Sandvik Coromant 5736979
MFR# 5736979ISO/ANSI# N1513400307G2135Series T-Max Q-Cut
$20.39List $26.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade2135
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5736979 is a N1513400307G2135 solid carbide indexable insert, grade 2135, TiCN/Al2O3/TiN coated.
Specifications
Chip breaker7G
Coating finishTiCN/Al2O3/TiN
Coating processCVD
Corner radius0.0157
Cutting width0.1575
Insert handNeutral
Insert materialSolid Carbide
Insert seat size30
Insert size40030
Insert styleN151.3
Insert thickness0.2083
Iso codeN1513400307G2135
Lead angle0
Manufacturers catalog number5736979
Manufacturer grade2135
Multi use toolYes
Rake angle11.00
