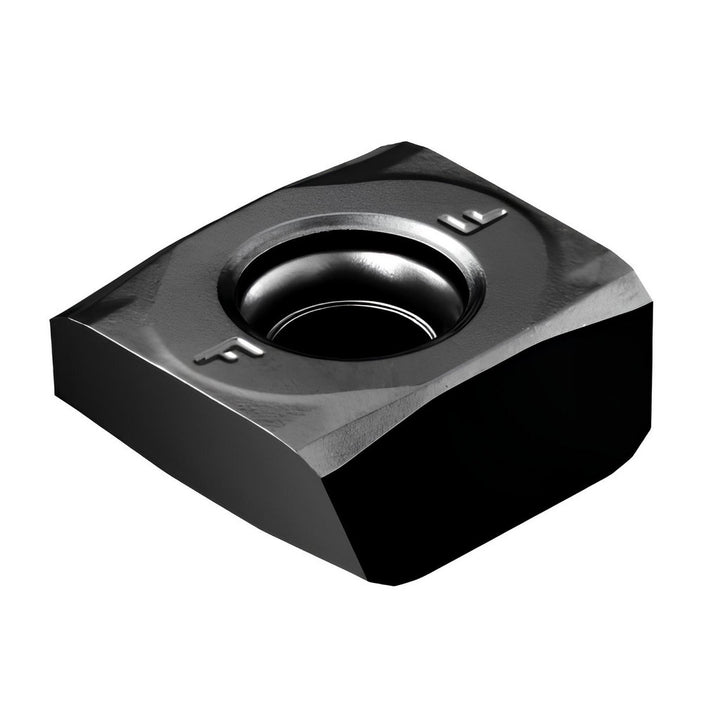

N260.8-1204-F CB50 CBN Insert, Grade CB50 - Sandvik Coromant 5736993

Sandvik Coromant

N260.8-1204-F CB50 CBN Insert, Grade CB50 - Sandvik Coromant 5736993

MFR# 5736993ISO/ANSI# N260.8-1204-F CB50Cat# N260.8-1204-F CB50Series N260.8

$200.42List $257.04 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/16
ShapeSquare
GradeCB50
MaterialCBN

Description

The Sandvik Coromant 5736993 is a N260.8-1204-F CB50 cbn indexable insert, grade CB50. Suited for cast iron, hard material.

Specifications

Ansi codeN260.8-1204-F CB50
Chip breakerFlat Top
Coating processUncoated
Corner radius0.0709
Cutting edge styleCorner Rounded
Hole diameter0.1732
Included angle degree90
Inscribed circle in3/16
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialCBN
Insert shapeSquare
Insert size12
Insert size code1204
Insert styleN260.8
Iso codeN260.8-1204-F CB50
Length in3/16
Length range0.0000 to 0.3200
Manufacturers catalog numberN260.8-1204-F CB50
Manufacturer gradeCB50
Material applicationCast Iron; Hard Material
Material gradeK10
Maximum depth of cut0.0394
Multi use toolYes
Number of cutting edges1
Primary workpiece materialCast Iron; Hard Material
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/2
Thickness range0.5000+
Width in3/16
