Sandvik Coromant

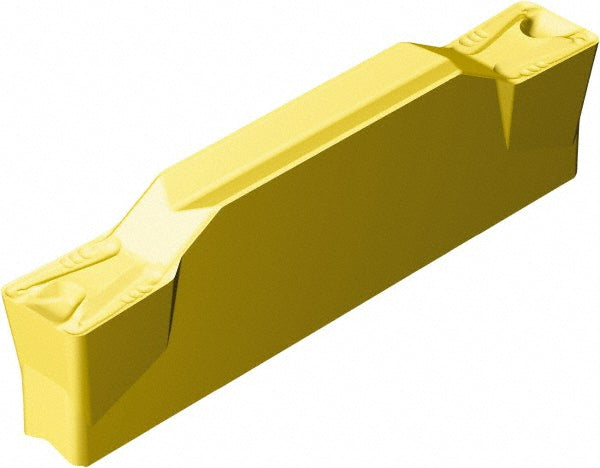

N123K2-0600-0008-TM 2135 Solid Carbide Insert, Grade 2135, TiCN/Al2O3/TiN - Sandvik Coromant 5737038
MFR# 5737038ISO/ANSI# N123K2-0600-0008-TM 2135Cat# N123K2-0600-0008-TM 2135Series CoroCut 1-2
$47.40List $60.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade2135
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5737038 is a N123K2-0600-0008-TM 2135 solid carbide indexable insert, grade 2135, TiCN/Al2O3/TiN coated.
Specifications
Chip breakerTM
Coating finishTiCN/Al2O3/TiN
Coating processMT-CVD
Corner radius0.0315
Cutting height0.1713
Cutting width0.2362
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeK
Insert sizeK
Insert styleN123
Insert thickness0.1713
Iso codeN123K2-0600-0008-TM 2135
Manufacturers catalog numberN123K2-0600-0008-TM 2135
Manufacturer grade2135
Maximum corner radius0.0354
Maximum depth of cut0.9055
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0276
Multi use toolYes
Overall length0.9654
Overall width0.2362
RakeNeutral
Rake angle7.00
