Sandvik Coromant

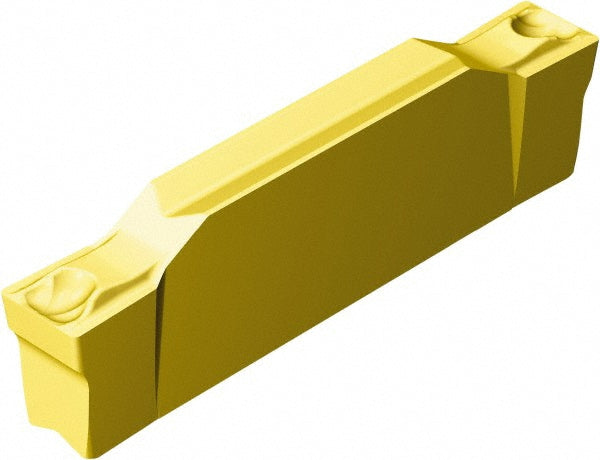

N123K2-0635-0008-GF 1005 Solid Carbide Insert, Grade 1005, TiAlN/TiN - Sandvik Coromant 5737050
MFR# 5737050ISO/ANSI# N123K2-0635-0008-GF 1005Cat# N123K2-0635-0008-GF 1005Series CoroCut 1-2
$52.00List $66.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1005
MaterialSolid Carbide
CoatingTiAlN/TiN
Description
The Sandvik Coromant 5737050 is a N123K2-0635-0008-GF 1005 solid carbide indexable insert, grade 1005, TiAlN/TiN coated.
Specifications
Chip breakerGF
Coating finishTiAlN/TiN
Coating processPVD
Corner radius0.0315
Cutting height0.1713
Cutting width in1/4
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeK
Insert sizeK
Insert styleN123
Insert thickness0.1713
Iso codeN123K2-0635-0008-GF 1005
Manufacturers catalog numberN123K2-0635-0008-GF 1005
Manufacturer grade1005
Maximum corner radius0.0335
Maximum depth of cut0.9488
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0295
Multi use toolYes
Overall length0.9862
Overall width in1/4
RakeNeutral
Rake angle7.00
