Sandvik Coromant

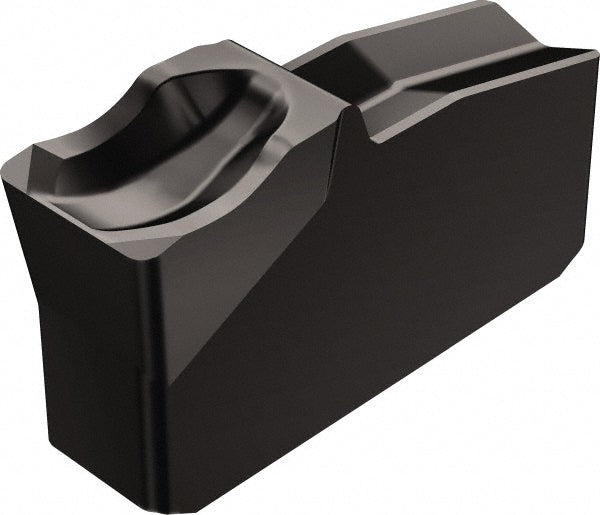

Solid Carbide Insert, Grade 3020, TiCN - Sandvik Coromant 5737077
MFR# 5737077Cat# N151.2-300-4E 3020Series T-Max Q-Cut
$19.88List $25.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade3020
MaterialSolid Carbide
CoatingTiCN
Description
The Sandvik Coromant 5737077 is a solid carbide indexable insert, grade 3020, TiCN coated.
Specifications
Chipbreaker4E
Coating finishTiCN
Coating processMTCVD
Corner radius0.0118
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size30
Insert size code30
Insert styleN151.2
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberN151.2-300-4E 3020
Manufacturer grade3020
Overall length0.2150
Overall width0.1181
Relief angle7.00
